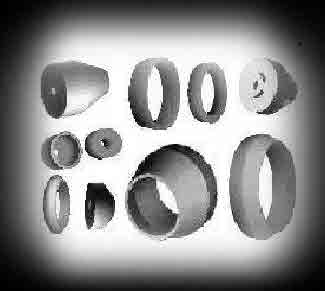

Graphite Ferrules

GRAPHITE FERRULES for the perfect connection > Chromtech
> & simply where metal ferrules are NOT GOOD ENOUGH ! .
Chromalytic Technology . . . OEM Graphite Ferrules NEW Price List 2016
Ferrules 22p (flipHTML5)
. . . would You believe has been one the leading OEMs for Graphite Ferrules
> and the original “up-start” OEM for these and whats-more . . . they are made in Australia !
( and also other types ) since <1980. AND We still supply many leading World chromatography distributors.
The normal standard chromatography sizes 1/16” to 1/4”OD sizes including many Reducing Ferrules mainly in Imperial sizes but Now extended into Metric Sizes primarily to suit Swagelok fittings ( by default !)

4 > Standard Swagelok (or other ?)
: Imperial & Metric Fittings
Custom Made >ANY Size ( if at all feasible ? )

YOUR Specs / Tolerances may be required
a (“once-off”) TOOLing Charge may also Apply

ALL Ferrules 19p Flip

Overview Graphite Ferrules GFs in 2016 PDF

Features

high temperatures 450degC ( for fused silica capillary GC
                           . . . but >>> in an inert atmosphere / fully enclosed in a fitting ?
                    the graphite is exposed to air eg in Reducing ferrules erosion
                   / oxidation of the exposed graphite can be expected / a limitation re time usage !
minus ??? degC

Glass / ceramic tubes

Yes ! they easily slide off > and “split” halves format

re-usable many times ( with care !

AND much LOWER Cost ( > from Us at least ! )

One-piece format ( but can be used if needed with a “backing” ferrule ( as a front ferrule)

Originally specifically designed for Swagelok fittings ( as standard )_
In recent years these have been extended to included Metric Swageloks
many “Custom-made” GraphiteFferrules - Any size to 2.0inch ID
but because U can draw it doesn’t mean it is feasible !
- Our range > including ”pseudo” O-rings, washers,sealing rings, cylindrical formats
and SS capture “cup” type seals
> a once-off tooling charge may apply for Custom Ferrules
- ASK ! for Quote/feasability for “Odd sizes”

current Max Size : of 2.0”ID (Swagelok is typical)
MInimum 1/16 Tube to 0.4mmID ( but squashable down further )

Graphite Ferrules HTM

1/16 to 2.0inch (Unique) : any Size inc Reducing & “Metric” Swagelok
“ Metric” M6, M8, M10,,M12, M14, M16, M20, M25, M32
see Mals Cart > Ferrules

CT > Graphite Ferrules

[Ferrules] [Ferrules-m4] [Ferrules-m5] [Graphite Ferrules] [Graphite Ferrules-m4] [Graphite Ferrules-m5] [Large GFs-M5]

Ferrules &Nuts-Chrom :PIC Gallery > GOOGLE SEARCH PIcs > PDF LINKs

Unique to Chromalytic : > . . . the ONLY OEM “in the World” for large Graphite Ferrules > CUSTOM MADE ! . . . to perhaps be too difficult for other GF competitors ? Graphite Rings/Seals and larger diameter Graphite Ferrules (GFs) ( 2.0” ID Max ) OEM to industry . . . see PDF Graphite Ferrules 2016 Overview / Sizes Data Sheet/ 2016-July Price List; From within the limited product range of our other suppliers ! . . . but also YOUR more “specialised” ferrule requirements are Also offered by Chromalytic & from our associated OEMs
