*Fittings* > Codings are a nightmare particularly threads, tubing sizes, types of connector-endpieces/ CHROMTECH specialises in Laboratory type Applications Tube Sizes from capillaty to ~3/8” NOT larger industrial types & sizes - these are available to Order but often Import and MOQs are required and currently with CP / COVID extensive lead times ( almost prhibitive) *GOOD As VP are we are seeking other sources of similar Plastic Fittings that are More “reliable”* *NOT Just as another reseller ! but direct from”Fair Dinkum”OEMs*	. . . > this is an attempt by *Chromtech* to rationalise a Coding System appllicable for Customers / End-Users specifying “exactly” what they want for a particular APP simplifying Ordering parts from Us ! we source and “translate” for you “Cat.#s, Part.#s etc for various OEMs & pretenders who we have sorted out FOR YOY ! There are in fact countless OEMs worldwide offering often similar “parts” perhaps with the same or very similar specs but How many of theses Chinese would YOU TRUST ? Some are more “exotic”, some for more specific APPS But MANY are just resellers of resellers or unidentified “OEMs” ALL fittings OEMS have ”bastardised” Codes to suit and have their own individual “generalised” system

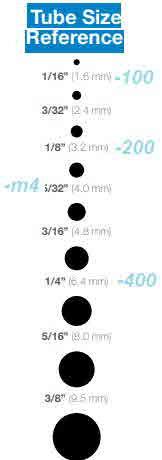

*Tube Sizes* + base on ID > various OD *Plastic/polymeric* > various Hardness ( Durometer ) > Chemical Compatability genrally supplied “Non-sterile” OEM Clean; NOT Sterile ( supposedly “sterile” but not necessarily legal ?) > *beWARE !* *TGA* are very *pedantic* in process use, and storage times ( from OEM / DOM ) *Home Use* “in boiling water”, heat sterilisation, :hypochlorite” wash ( bleach ) may be adequate for Vaccine, anti-virus APPS\or similar or otherwise “legislated” methods like > lock downs, mask-wearing, No Kids playgaounds, No playing golf or tennis or attending AFL Grand Finals to *“Comrade” Dans’s “whim” re COVID19 > “exaggerated Pandemic ! NO “Right” demonstartion BUT “Greenie“, DLM. “Left” demos are quite OK ! and obviousy “police and TGS approved “ > NOT subject to ANY penalty Most local Medical/Hospital resort to in-house sterilisation methods Autoclave > ethylene oxide gas > UV > gamma radiation* as approved by *TGA* ( *FDA* in the USA ) *material & APP delendant !* Business registration > to resell and to use “legally”	*Imperial* 050=1/32” 100=1/16” ID 200=1/8” 300-3/16” 400=1/4” 600=3/8” 800-1/2” 16000=1” ID
	*Metric Equivalents* m0.05, 50u m0.4, 0.4mm m0.5 0.5mm m0.75 0.75mm m1, 1mm m4, 4mm - 5/32” m6, *( 6.35mm )*

Material

Fittings
Metal
Stainless Steel -SS > Silcosteel -SIC
Brass -B
Copper -C
Plastic / Polymeric
-6005 Polypropylene
Nylon -2 Black / White -1
PolyCarbonate -9
-J1A /( Kynar )

Tubing
PVC (VINYL)(“plasticser-free”
PolyUrethane
Silicone : Platinum / Peroxide Cured
TPE ThermoPlasticElastomer
Peristaltic Tubing > various

Laboratory / Chromatography Grade

Tubing
PEEK
PPS ( polyPhenykSulfide
FluoroPolymers :Teflon; PFA, FEP (transparent : ETFE/Tefzel,( Rad resistant )

Fittings>Material
PEEK
PPS ( polyPhenykSulfide lower cost PEEK)
Teflon
CTFE ( harder form of Teflon-like)
Stainless Steel
Brass

Barb Sizes

Value Plastics - incredible range for optimum performance, re pressure soft > Hard Tubin > sizes are a bit academic as many tubing materials “stretch” by 10 to 50% re Pressure >
Extra Pressure use Tubing Clip if OD > = ~1/4”

Barb Styles-A

Barb Styles-B
in hindsight during COVID19 VP are struggling to produce due to Govt demands
possibly just copies of other OEMs commercial products just aimed by them to “lock-in customer as replacement items” for their own products
“mass production” in case it ever eventuates
might explain why some VP items have MOQs or
10,000 or higher

in hindsight probably VP has proven to have been a bit too ambitious / over-commited since a
“start-up” in the ‘90s

ALL of these barb seem to be offered even tho’ arguably of Only “academic” interest perhaps ?

Ceetainly for low production R&ED purpose most od these are interchangable for all intentents & purposes

MOST lab / Industrial OEMs standardise on a Series200 barb-type for medium>Most Applications

OUR Choice for our Australian Stocking purposes

“Common” GeneralPurpose Barb - Typical Sizes ONLY

see more detailed summary VP 2019 PDF 148-165 VP Part Properties
